DM Class 800
1 1/2" Snaplock 15 1/2"" Wide
26 Ga. Galvalume, 0.032" Aluminum

Description

1½” standing seam profile. Allows for hidden fasteners. This profile was designed specifically to be affordable and easy to install. Traditionally installed with a 3” fixed clip. This profile is also available with a 26ga continuous clip 10 feet long.

tech Specs

0.032" Aluminum (FL# 30751.6)
Installation Instructions | Product Approval
26 Ga. Galvalume (FL# 30751.7)
Installation Instructions | Product Approval

  • Available in 15 1/2" wide coverage
  • Over 15/32" Plywood
  • High Velocity Hurricane Zone (HVHZ) Approved
  • Class A Fire Rated
  • Miami-Dade & Broward Counties Approved
  • 10' Continuous Clip Available
  • Salt Water Finish Warranties Available

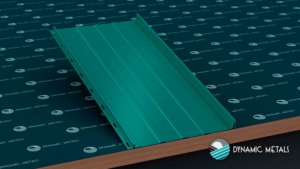

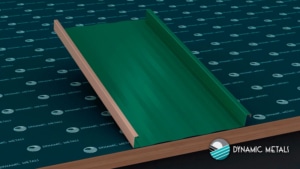

Panel Design

Extras

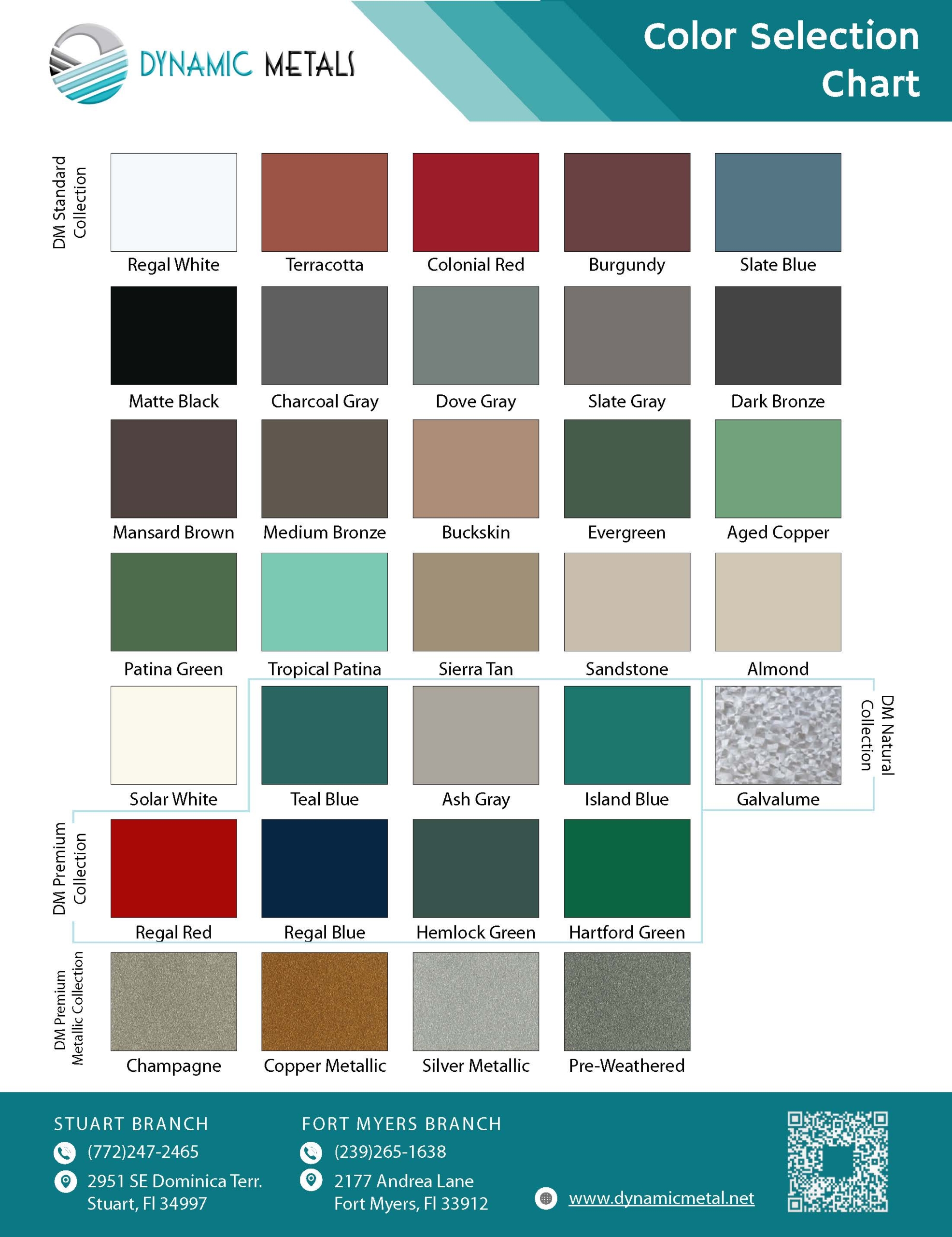

Color Palette

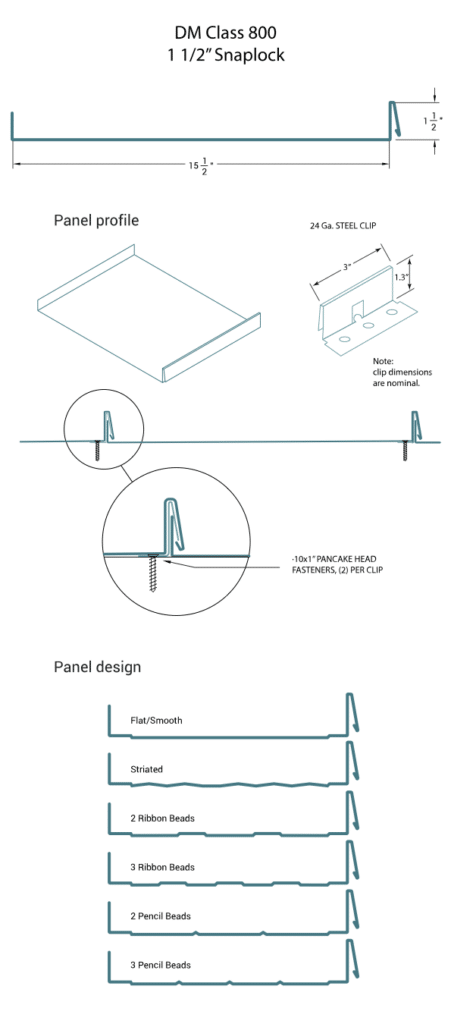

Wire Drawings

Outline Download PDF
  • 4 steps

    Step 01
    Select Roof

    Choose the Roof color.

  • 4 steps

    Step 02
    Select Trim

    Choose the Trim color.

  • 4 steps

    Step 03
    Select Gutter

    Choose the Gutter color.

  • 4 steps

    Step 04
    Select Siding

    Choose the Siding color.
